Operation Manual of Brake Pad Drilling Machine

PSR-ABPD-D/3

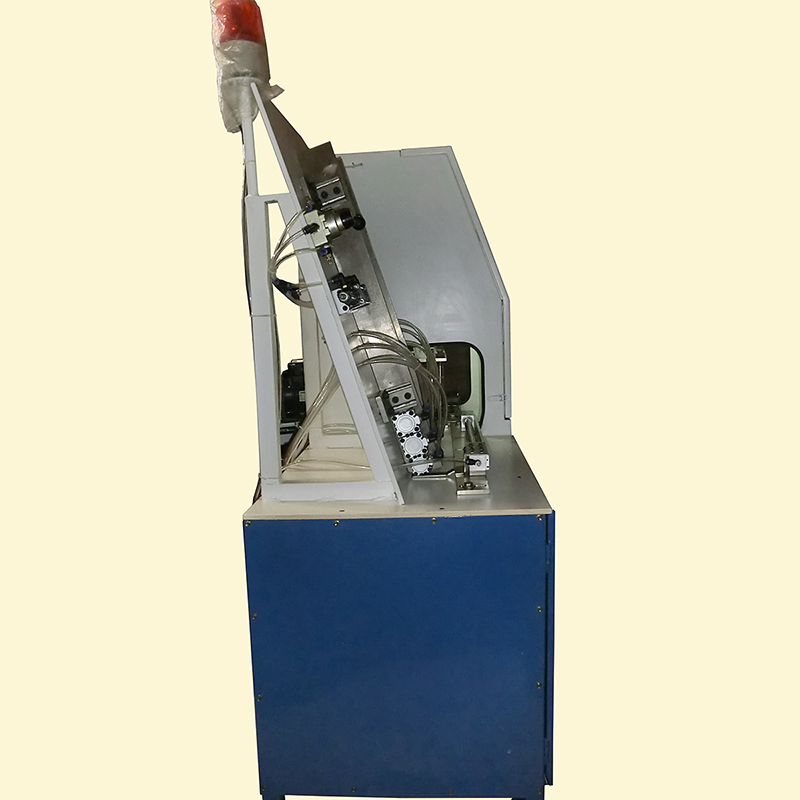

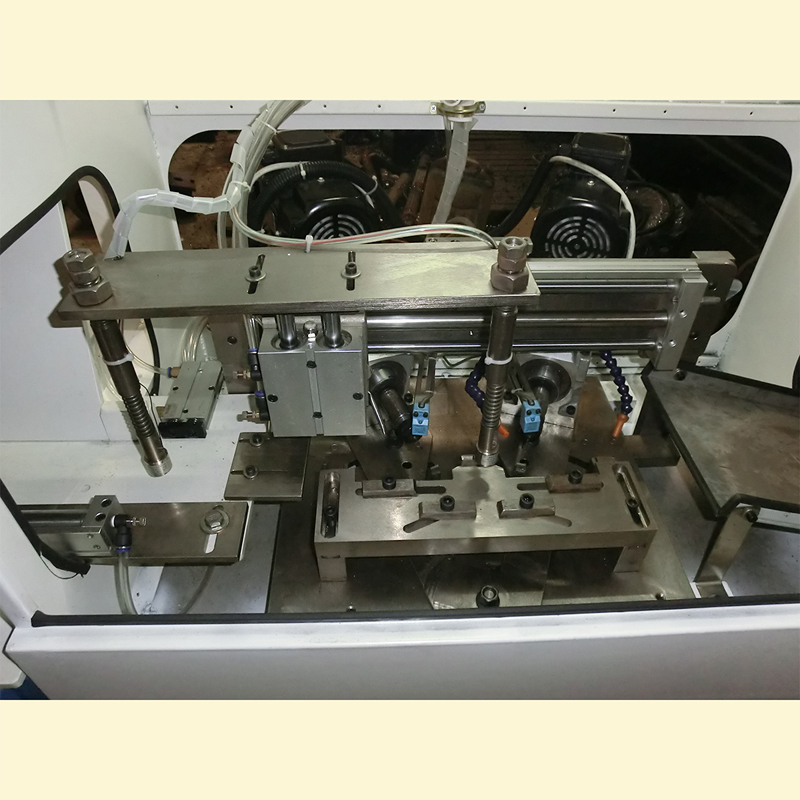

The equipment is composed of storage rack, automatic feeder, take-off, automatic drill, pneumatic system, cooling system, fault alarm system, etc.

1. Before production, turn the machine to manual control. Each mechanical and pneumatic component can operate independently. According to production requirements, adjust the position of the positioning plate, the angle of the automatic drill bit and the depth of the drill bit to desire spot, stack the backing plate on the storage rack, face up, and drill side inside. Applying to cylinder clamping movement and backing plate weight down-force to achieve feeding action.

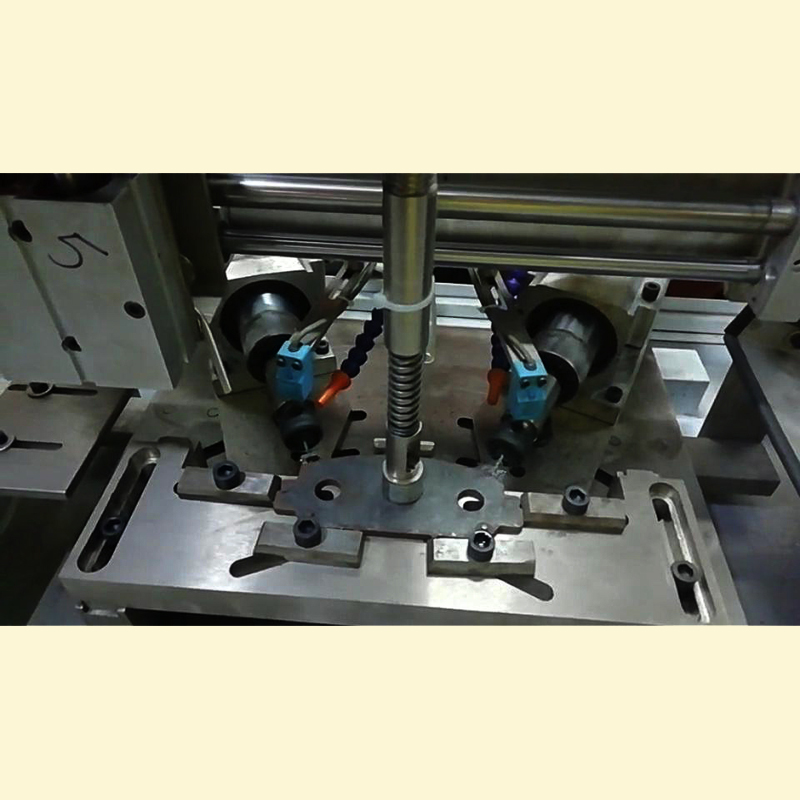

2. Turn to automatic control, start the machine, place the backing plate to the storage rack, through pneumatic system to feeding backing plate to drilling area through the magnet and pneumatic push. When the pre-inspection parts of the drilling nozzle act normally, and the automatic drill starts drilling.

3. After drilling, the unloader will take away the finished product, put it into the receiving chute, and put the next backing plate into the drilling area automatically.

4. Infrared probe and position switch are arranged at each action position of the equipment to monitor the production process entirely. Once the drill bit breaks and is not in place, it can automatically stop the machine and light the alarm in time, and cut off the power supply after the set time. In case of any fault in electrical and pneumatic systems, the fault location will be displayed on the touch screen. When the equipment is working normally, the touch screen will display the production action in real time, which is convenient for operation and understanding. And, of course, the unit offers a better, safer, and faster working environment.
