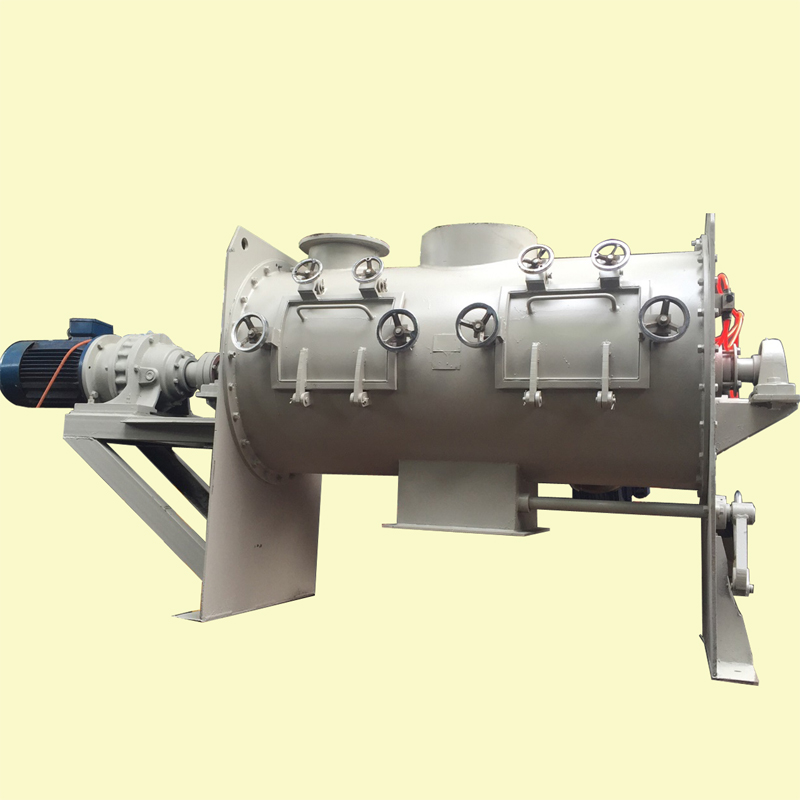

Plough Type Materials Mixer

1. Total Capacity: 1,250/L

2. Working Capacity: 1,250/L

 3. Main Motor: 22kw

4. Main Shaft Speed: 85 ~ 245 RPM

5. Blade’s Motor: 5.5kw (2 Units)

6. Blade Speed: 1,440 ~ 2,900 RPM

7. Blade Qty: 12/Pcs

8. Plough Main Shaft: 7/Pcs

9. Outer Dimension: 3,500 x 1,580 x 1,700

10. Air Compression Ratio: 0.25 ~ 0.4Mpa

11. Mixing Temperature: Below 60 Celsius
